Amano
Amano Time Guardian with MTX-15 Clock Terminal Time System
The MTX-15 menu-driven terminal is compatible with the Time Guardian and Time Guardian PRO workforce management solution.
- Shipping is calculated at checkout from live carrier rates for your address.
- Questions? Call 800-605-7308.
Details
AMANO Time Guardian with MTX-15 KIT INCLUDES
- Time Guardian software for single PC
- MTX-15 Magnetic Stripe Card Reader Clock Terminal
- Power Supply for Clock Terminal

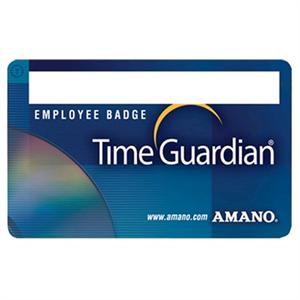

- 25 Magnetic Stripe Badges
- Communication Cable
- Software and Hardware User Guides
Amano MTX-15 Clock Terminal Brochure
.
Amano Time Guardian Software Brochure
.
Amano Time Guardian User Manual
.
Amano MTX-15 Clock Terminal User Manual
Product Description
The Amano MTX-15 magnetic stripe card clock terminal allows employees to swipe their badges through the side slot reader to clock in or out. (If they forget or misplace their badge, they can also clock in and out using the terminal keypad.) You schedule the software to automatically poll the terminals and retrieve the stored transactions.
Features and Benefits
SOFTWARE SPECIFICATION
- Single PC license
- Windows®-based system (Windows® Vista™, XP™, and 2000™)
- Accommodates 100 employees (upgradeable to 250 employees)
- Software wizard guides you through initial setup
- Automatic data polling and time synchronization
- Unlimited number of departments, pay policies, schedules, and holidays
- Optional auto deduct for meal/break
- Software supports multiple languages (English, French, Canadian French, Spanish, Puerto Rican Spanish, Mexican Spanish, and Dominican Spanish)
- Password security for login protects sensitive employee data
- Comprehensive time rounding capabilities
- Calculates weekly, bi-weekly, semi-monthly, or monthly pay period
- Automatic overtime calculation with overtime authorization capability
- 8 standard reports
- Payroll export for QuickBooks®, ADP®, Paychex®, Peachtree® and more

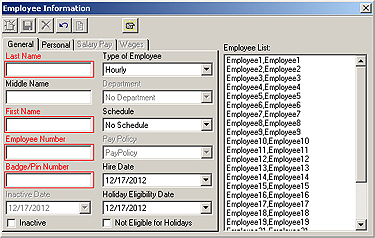

Employee Information Screen maintains basic employee information

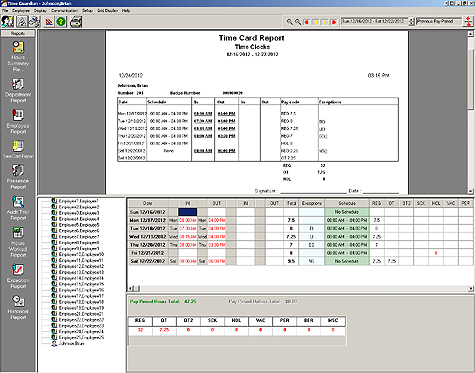

<<< Time and Reports Screen allows for basic punch addition, deletion, and editing and running of reports

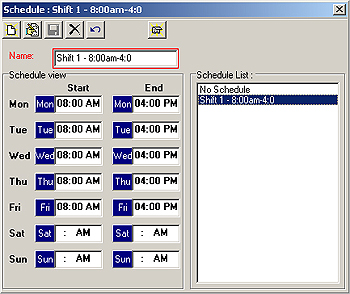

Schedule Screen for defining recurring shift schedules >>>

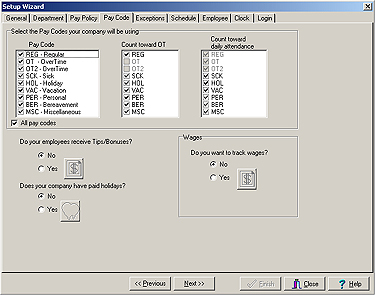

<<< Setup Wizard guides you through configuration of system

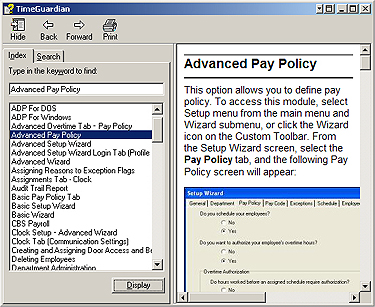

Online Help offers comprehensive detail for each area and screen within the system >>>
HARDWARE SPECIFICATION
- MTX-15 Magnetic Stripe Card Reader Clock Terminal
- Easy-to-read, large LCD displays time, date, and employee name
- Memory stores up to 24,000 transactions
- Serial/USB or Ethernet (TCP/IP) communications
- Internal passive lithium battery backup retains time and settings during power failure
Transaction Storage: 24,000 transactions
Product Height: 8.25 inches
Product Width: 4.25 inches
Product Depth: 2.12 inches
Product Weight: 6.25 lbs.
Display Type: Digital
Battery Back Up: Yes
Voltage: 120 volts 50/60 MHz
System Requirements
- PC with Pentium® III 650 MHZ or higher
- 256 megabytes of RAM
- 150 MB of free space on the PC's hard drive
- CD-ROM
- Available RS232 communication 9-pin serial port or USB slot or Ethernet connection
- Monitor and video card capable of 800 x 600, 256 SVGA resolution
- Mouse or other pointing device
- Windows® Vista™ Business or Enterprise, Windows XP™ Professional, Windows Server™ 2003, Windows 2000 Professional
- Attached printer for hard copy reports
Warranty Information
Amano offers a one-year manufacturer's limited warranty. Warranty does not include consumable parts. With few exceptions, all are return to depot for service. User must pay for shipping to depot. Repaired products will be returned with shipping charges prepaid.
